Specifications

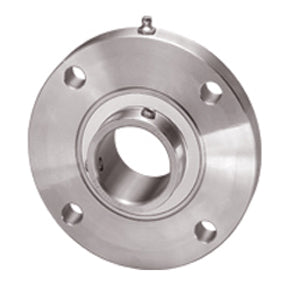

| title | SUCSFCX 05 16 |
| price | $ 239.92 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 2.9 |
| Bore | 1 Inch | 25.4 Millimeter |
| Other Features | Single Row | Spherical | Medium Duty | Corrosion Resistant | Stainless Steel Insert | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 557673 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.5 Inch | 38.1 Millimeter |
| Cartridge Pilot Diameter | 3 Inch | 76.2 Millimeter |
| Cartridge Pilot Depth | 0.234 Inch | 5.944 Millimeter |
| Bolt Spacing | 2.6 Inch | 66 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.7 Inch | 95 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/16 Inch |
| Insert Part Number | SUCX05-16 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Stainless Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
| Pilot Configuration | With Pilot |
