FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

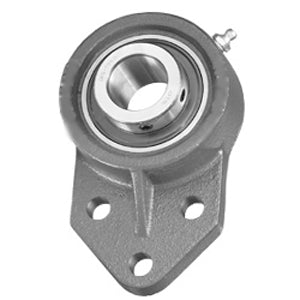

title | UCFB 206 18 |
price | $ 33.85 / each |
Category | Flange Block Bearings |
UNSPSC | 31171501 |
Harmonized Tariff Code | 8483.20.40.40 |
Manufacturer Name | IPTCI |
Inch - Metric | Inch |
Brand | IPTCI |
Weight / LBS | 2 |
Bore | 1.125 Inch | 28.575 Millimeter |
Other Features | Single Row | Spherical | Standard Duty | Wide Inner Race |
Relubricatable | Yes |
Global Part Number GPN | 557174 |
Mounting Method | Set Screw |
Length Thru Bore | 1.5 Inch | 38.1 Millimeter |
Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
Bolt Spacing | 1.25 Inch | 31.75 Millimeter |
Nominal Bolt Circle Diameter Round | 0 Inch | 0 Millimeter |
Housing Style | 3 Bolt Flange Bracket |
Number of Mounting Holes | 3 |
Mounting Bolts | 5/16 Inch |
Insert Part Number | UC206-18 |
Housing Configuration | 1 Piece Solid |
Housing Material | Cast Iron |
Expansion / Non-expansion | Non-expansion |
Seals | B Seal |
Pilot Configuration | No Pilot |
