FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

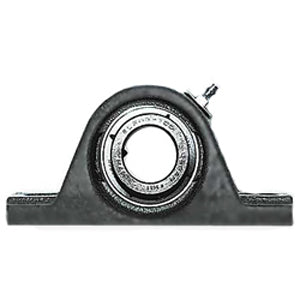

| title | UELPL210-115D1 |
| price | $ 90.79 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 2.872 |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 6 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Low Base | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 514428 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.469 Inch | 62.713 Millimeter |
| Actual Bolt Center to Center | 6.3 Inch | 160Millimeter |
| Nominal Bolt Center to Center | 6.3 Inch | 160 Millimeter |
| Base to Center Height | 2.188 Inch | 55.575 Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UEL210-115D1W3 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
