Specifications

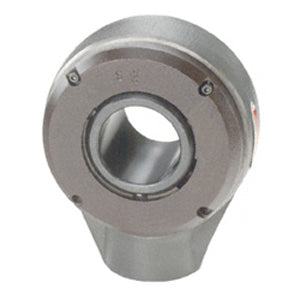

| title | PVR-1229 |
| price | $ 665.96 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 9 |
| Bore | 2.438 Inch | 61.925 Millimeter |
| EAN | 662461306840 |
| Other Features | Single Row | Spherical | Paver Bearing | With Fiber Glass Seal |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.563 Inch | 65.1 Millimeter |
| Base to Center Height | 4.25 Inch | 107.95 Millimeter |
| Housing Outside Diameter | 5.75 Inch | 146.05 Millimeter |
| Housing Overall Length | 7.125 Inch | 180.975 Millimeter |
| Mounting Thread | 1-1/2 Straight Pipe Female |
| Insert Material | Black Oxide Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | SK-1272 |
| Rating | Normal Duty |
| Housing Material | Ductile Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Lip Contact |
