Specifications

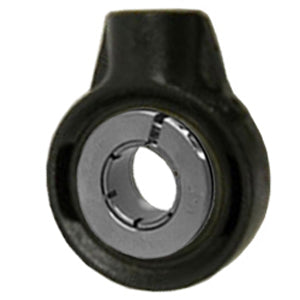

| title | SCHB-16T |
| price | $ 239.17 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 2.4 |
| Bore | 1 Inch | 25.4 Millimeter |
| EAN | 662461081662 |
| Other Features | Single Row | Spherical | Metal Land Riding Retainer | Has Flinger |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.438 Inch | 36.525 Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Housing Outside Diameter | 3.125 Inch | 79.375 Millimeter |
| Housing Overall Length | 4.063 Inch | 103.2 Millimeter |
| Mounting Thread | 3/4 Straight Pipe Female |
| Insert Material | Black Oxide Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | 3-1T |
| Rating | Medium Duty |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
