Specifications

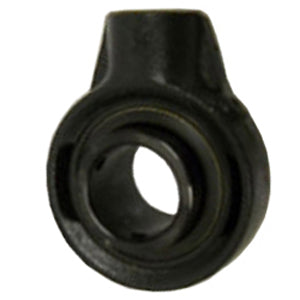

| title | SCHB-28C |
| price | $ 334.59 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 4.65 |
| Bore | 1.75 Inch | 44.45 Millimeter |
| EAN | 662461021392 |
| Other Features | Single Row | Spherical | Metal Land Riding Retainer | Has Flinger |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.031 Inch | 51.587 Millimeter |
| Base to Center Height | 3.25 Inch | 82.55 Millimeter |
| Housing Outside Diameter | 4.375 Inch | 111.125 Millimeter |
| Housing Overall Length | 5.438 Inch | 138.125 Millimeter |
| Mounting Thread | 1 Straight Pipe Female |
| Insert Material | Black Oxide Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | 3-112C |
| Rating | Medium Duty |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
