Specifications

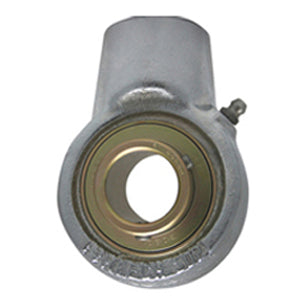

| title | UCECH204NPMZ2RF |
| price | $ 101.15 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | AMI BEARINGS |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.6 |
| Bore | 0.787 Inch | 20 Millimeter |
| EAN | 808250379071 |
| Other Features | Single Row | Spherical | Corrosion Resistance | Wide Inner Race | Has Slinger |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.22 Inch | 31 Millimeter |
| Base to Center Height | 2.52 Inch | 64 Millimeter |
| Housing Outside Diameter | 2.756 Inch | 70 Millimeter |
| Housing Overall Length | 3.898 Inch | 99 Millimeter |
| Mounting Thread | 3/4 Straight Pipe Female |
| Insert Material | Zinc Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | UC204MZ2RF |
| Rating | Normal Duty |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Lip Contact |
