Specifications

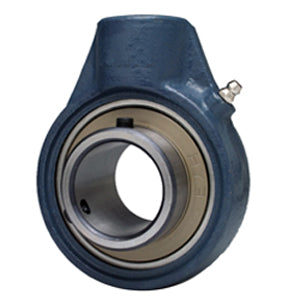

| title | UCHA20514 |
| price | $ 45.80 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | FYH |
| Inch - Metric | Inch |
| Brand | FYH |
| Weight / LBS | 1.918 |
| Bore | 0.875 Inch | 22.225 Millimeter |
| Other Features | Single Row | Spherical | Has Slinger |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.343 Inch | 34.112 Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Housing Outside Diameter | 3.063 Inch | 77.8 Millimeter |
| Housing Overall Length | 4.063 Inch | 103.2 Millimeter |
| Mounting Thread | 3/4 Straight Pipe Female |
| Insert Material | Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | UC205-14 |
| Rating | Normal Duty |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Lip Contact |
